GJFXH outdoor drop cable light ftth 1/2/4 core fiber optic Single mode G657 fiber lszh material lszh networking

  • 1
  • 2
  • 3

Brand Name : EBOCOM

Model Number : GJFXH-2B1

Certification : ISO TLC

Place of Origin : China

MOQ : 2000M

Price : EXW ≥2000m $0.018/M ≥5000m $0.014/M

Payment Terms : T/T

Supply Ability : 50000KMS/day

Delivery Time : 5-8 day

Packaging Details : 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Product name : GJFXH outdoor drop cable light ftth 1/2/4 core fiber optic Single mode G657 fiber lszh material lszh networking

Fiber type : g657a

Fiber count : 1-4core

Jacket material : lszh pe pvc

Color : black

Strength member : frp

Contact Now

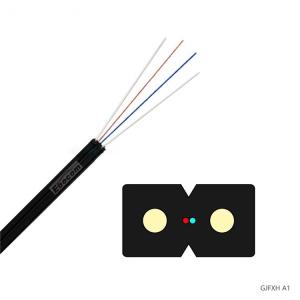

The fiber optic unit is located in the center. Two parallel steel wires (or glass steel) are placed on either side. 1 extra wire for the suspension wire. The cables are then fitted with black or colour LSZH sheathing.

Optional Fiber:

Single mode G652D G657A1 G657A2

Multi-mode OM1 OM2 OM3 OM4 OM5

GJFXH outdoor drop cable light ftth 1/2/4 core fiber optic Single mode G657 fiber lszh material lszh networking

Features:

  1. 1.Simple structure, convenient, convenient indoor wiring.
  2. Good anti-side pressure design
  3. The number of fiber cores is 1-12. Other fiber cores can be provided on request
  4. White is used indoors, other colors are also available upon request
  5. The outer sheath material is LSZH, other materials can also be used according to requirements.

Application field:

  1. Used for pigtails and jumpers
  2. Used as the device interconnection cable for the optical connection between the optical communication room and the optical communication room.Distribution framework.
  3. Used for indoor wiring, especially for FTTH.

Item Technology parameter
Cable type Drop Cable
Cable Count 1 2 4
Fiber color Optional
Fiber type 9/125 (G657)
Sheath color Black and white
Sheath material LSZH
Cable dimension (mm) 3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km) 15
Min. bending radius (mm) 10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km) 0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N) 200; 600
Crush resistance (N/100mm) 1000; 2200
Operation temperature (℃) -20~+70℃
